Single Machine Gantry Loader

Load: 1kg

Stroke: X: 3000mm / Z: 1500mm

Transmission mode: linear rail + gear rack

Moving speed: X: 90m/min / Z: 90m/min / Y: 50m/min

Inquire Now Next Product

Product Descriptions

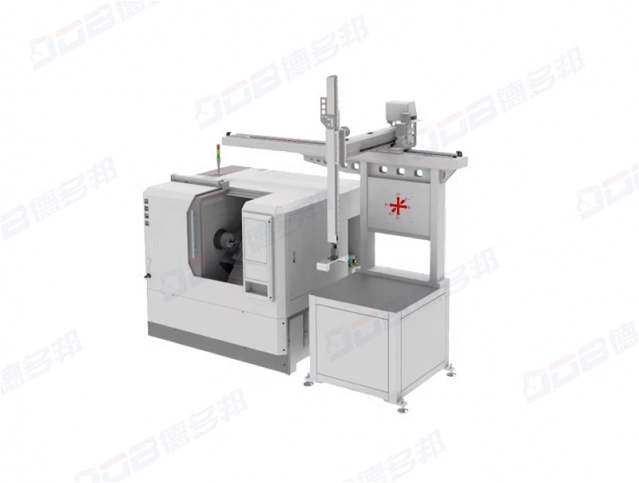

The Single Machine Gantry Loader is an automated loading and unloading manipulator system specifically designed for individual processing equipment such as injection molding machines, CNC machine tools, and stamping presses. Its core function is to independently serve a single device, achieving efficient and precise material handling through a gantry-style structure. When the material silo is in position, the gantry manipulator grasps the raw material, accurately places it into the lathe chuck, and synchronously removes the finished workpiece after processing. As the optimal choice for CNC machining auxiliary equipment, it enhances production efficiency while reducing labor costs.

Single Machine Gantry Loader

Advantages

Single Machine Gantry Loader:

Optimized for small-part machining, this system features an aluminum beam structure and cost-effective controller, ensuring seamless integration into existing lathe operations with minimal operator training.

Modular Matrix Pallet System:

Designed for rapid changeovers and maintenance, the flexible pallet configuration accommodates shafts, discs, and complex geometries, delivering exceptional versatility across diverse manufacturing requirements.

Adaptive End-Effector Design:

The pneumatic rotary actuator with interchangeable gripper fingers enables on-the-fly adjustments for varying workpiece dimensions, providing unmatched flexibility in part handling.

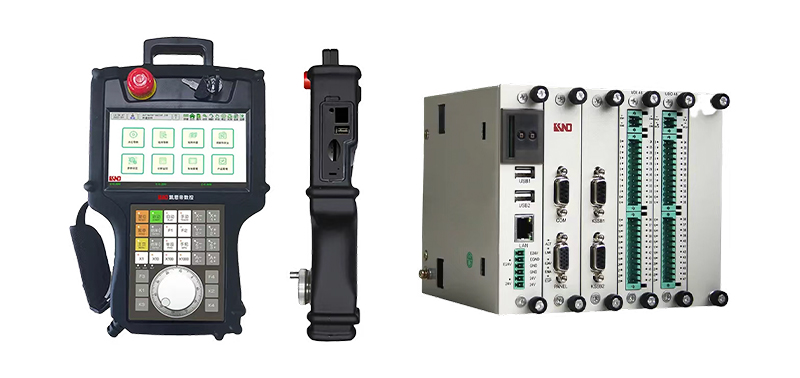

Control System:

1.Multi-language operation interface for easy learning and use.

2.Supports auxiliary action functions for convenient IO signal control.

3.Enables setting of 3D operating zones to avoid collisions and interferences.

4.Features fault detection, alarm logging, and backup control capabilities with independent operation of main and parallel channels.

Single Machine Gantry Loader
