Payload: 5-10 kg
Stroke: X: 4500 mm / Z: 1000 mm / Axis A: 85° Hollow Rotary Platform
Transmission: Linear Guide + Rack & Pinion
Travel Speed: X: 90 m/min / Z: 90 m/min / A: 30 m/min
Product Descriptions

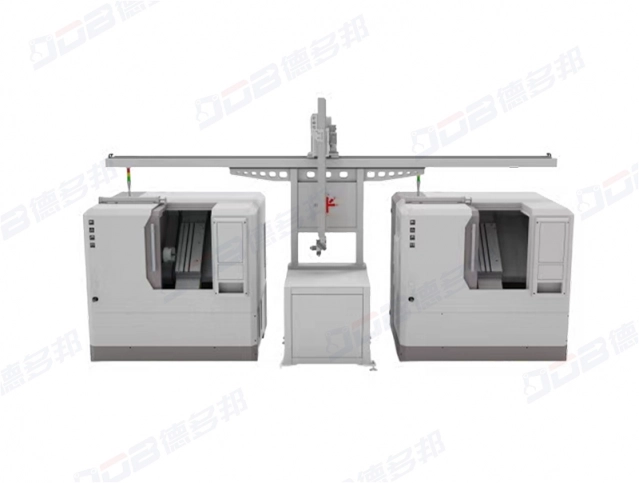

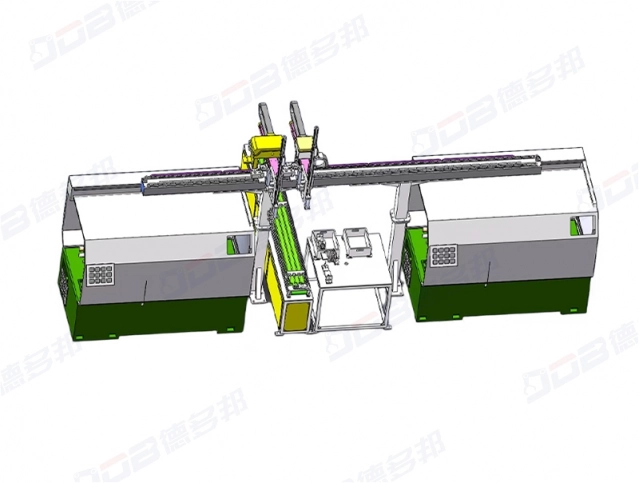

This dual-machine automation system connects two machine tools via left and right manipulators. The central grid-style magazine can hold N workpieces, allowing operators to simply place parts into the magazine.The magazine positions workpieces and signals the manipulator, Truss manipulator feeds raw material to the first machine, Retrieves semi-finished parts and moves to reorientation station，180° rigid flip changes processing surface, Loads second machine and retrieves final product, Returns finished parts to magazine, Single robotic system fully automates production for two machining centers.
Advantages
This dual-machine automated manipulator is compatible with various CNC lathes. It can process both sides of a workpiece in sequence or perform the same operation on two machines simultaneously, achieving fully automated, high-efficiency mass production.
The dual-Z axis design enhances efficiency for short-cycle or A/B surface machining.

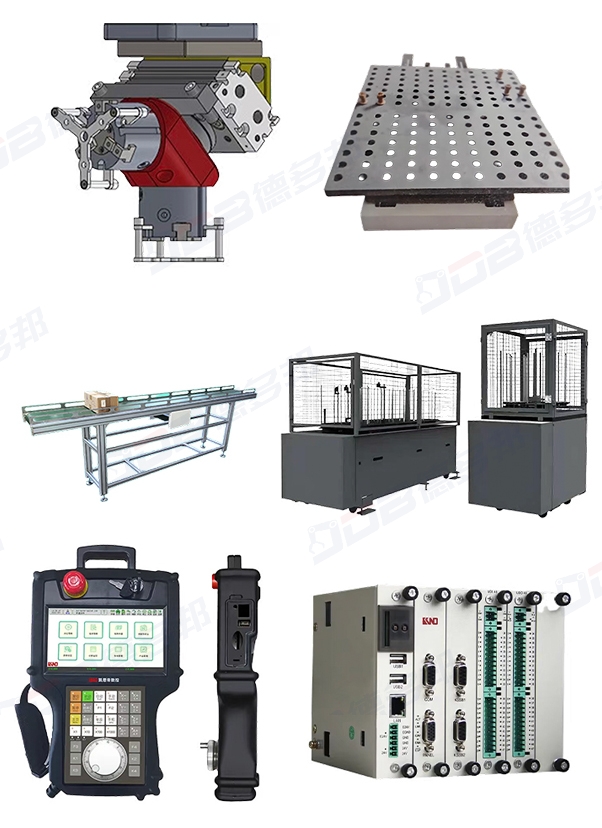

Customizable options include grippers, grid or rotary magazines, belt feeders, and plate chain conveyors, tailored to product shape and size.
Execution System
Execution System:
1.Integrated dual-position gripper mechanism supporting vertical/horizontal multi-directional picking and placing.
2.Built-in real-time detection signals and step-by-step error prevention system.
3.High positioning accuracy (±0.1mm), high-speed operation (≥60 cycles/min), and long-term stability.
4.Equipped with pneumatic protection device that automatically locks in case of power/pressure loss to prevent workpiece dropping.
Material Storage System:
1.Grid matrix tray with single-tray capacity of (N) pieces (customizable).
2.Uses coordinate positioning system for precise tray alignment and sequential picking by the truss robot.
3.Automatically triggers station shifting after a full tray is processed.
Control System:
1.Multi-language operation interface for easy learning and use.
2.Supports auxiliary action functions for convenient IO signal control.
3.Enables setting of 3D operating zones to avoid collisions and interferences.
4.Features fault detection, alarm logging, and backup control capabilities with independent operation of main and parallel channels.
Installation Machine Tool Dimensions Required:
1. Total height from floor to top of machine tool
(This dimension determines the height of the manipulator base.)
2. Height from spindle center to top/bottom of machine tool
(This dimension determines the stroke required for the manipulator vertical axis.)
3. Z-axis pallet stroke of the machine tool, measured from chuck end face
(This dimension determines whether the manipulator loading/unloading gripper will interfere.)
4. Workshop height
(Ensures no interference during manipulator loading/unloading operations.)
