Load capacity: Customizable (>10kg)
Height: Customizable (2-10 meters)
Working radius: Customizable (>5 meters)
Drive mode: Fully servo control
Control mode: Manual/intelligent control
Installation method: Ground-fixed or mobile
Material: High-strength steel/aluminum alloy
Advantages
Ultra-large Load Capacity:
A core advantage, easily bearing ultra-heavy workpieces ranging from several tons to dozens of tons, solving the limits of human strength.
Extensive Coverage:
Designed with a large span and long stroke, flexibly covering large work areas and multiple devices.
Superior Rigidity:
A robust structure (double-beam/multi-beam) resists deformation, ensuring stable operation and equipment service life.
High-precision Positioning:
Precise transmission and control systems achieve a repeat positioning accuracy of ±0.1mm, meeting strict technological requirements.
Efficient Cycle Time:
24/7 high-speed and stable operation shortens the production cycle and significantly improves overall production capacity.
Safety and Reliability:
Completely replaces manual handling of high-risk heavy objects, integrating multiple protections to ensure the safety of personnel and machines.
Flexible Adaptability:
Modular design allows high customization of the number of axes, stroke, load, and end tools (fixtures).
Quality Assurance:
The handling process is precise and consistent, reducing workpiece damage and positioning errors to improve product yield.
Cost Reduction and Efficiency Enhancement:
Reduces labor and work-related injury costs, minimizes waste, and delivers significant long-term operational economic benefits.
Space Optimization:
The main body is overhead, mainly occupying upper space, with high ground utilization, suitable for compact workshops. It is the ultimate solution to automate the handling of overweight and oversized workpieces, with core competitiveness in strength (load/rigidity), space (coverage), precision, efficiency, safety, flexibility, and economy, empowering the automation upgrade of the heavy manufacturing sector.
Applications

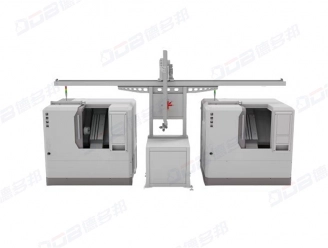

1. Heavy Machine Tool Loading/Unloading:
Automates handling of large castings/forgings, engine blocks, construction machinery parts in/out of CNC machining centers, lathes, etc., replacing manual/crane operations for safety and efficiency.
2. Stamping Line Transfer:
High-speed, precise transfer of heavy metal sheets/semi-finished stampings(e.g., auto body panels, large sheet metal parts) between multiple presses in automotive or industrial stamping lines.
3. Foundry/Forging Operations:
Handles hot steel ingots, large cast/forged blanksfor cleaning, heat treatment, or equipment feeding, operating reliably in harsh environments.
4. Wind Energy/Construction Machinery Manufacturing:
Transfers super-heavy components (wind turbine blades, tower sections, excavator booms) between welding, machining, and assembly stations for precise positioning.
5. Rail Transport/Aerospace Manufacturing:
Handles high-value oversized parts(high-speed train bogies, aircraft wing spars, rocket fuel tanks) for precision assembly and machining processes.
6. Large Mold Management:
Automates storage/retrieval of multi-ton injection/die-casting molds, enabling fast mold changes and reducing crane dependency.
7. Steel/Glass Handling:
Transfers heavy steel ingots, thick plates, large glass sheets for cutting, processing line feeding, or furnace operations.
8. Precision Inspection Positioning:
Accurately positions large workpieces(e.g., automotive chassis) for CMM (coordinate measuring machine) or laser scanning inspection.
When you need to automatically, precisely, and safely move or position huge workpieces ranging from hundreds of kilograms to dozens of tons, especially in production lines of industries such as automotive manufacturing, heavy equipment, energy (wind power), aerospace, rail transit, and basic materials (metal/glass), heavy-duty gantry truss manipulators serve as the key solution.
