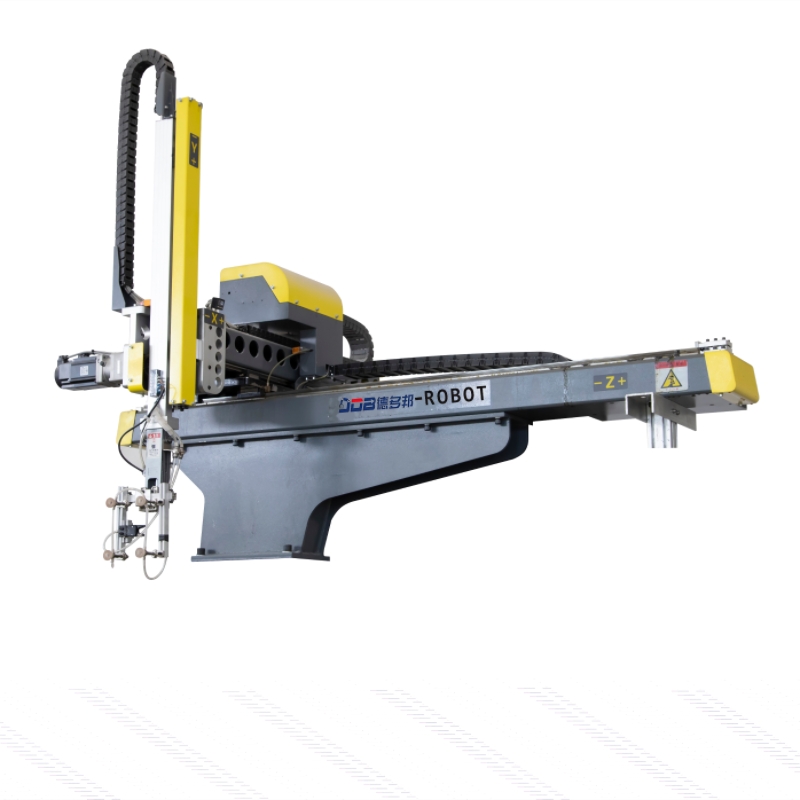

Injection Molding Pick-and-Place Robot

Max load: 20kg
I.M.M.range: 500T-1600T
Power: AC200-220V± 10%, 50/60HZ

Drive system: AC servo motor

Inquire Now Next Product

Product Descriptions

This Injection Molding Pick-and-Place Robot has a load capacity of 20 kg and is designed for 500-1600 ton injection molding machines. With a vertical stroke of 1400-1800 mm and a front-rear stroke of 1100-1200 mm, it is engineered to accurately pick up products and place them in the required positions. It is suitable for two-plate molds or hot runner systems and features functions such as arranging, stacking, quality inspection, and in-mold placement.

Injection Molding Pick-and-Place Robot

Advantages

Precision manufacturing:

High-precision processing equipment and techniques are adopted to ensure that each component of the mechanical hand has high precision and stable operation.

Modular design:

Easy to maintain and upgrade, and components can be replaced or upgraded as needed.

Quality Control:

A strict quality control process ensures that each mechanical hand meets high standards of quality requirements.

Durable materials:

Made of durable materials, it ensures a long service life of the manipulator and reduces maintenance costs.

Specifications

General requirements
Model	General models（ton）	Vertical stroke（mm）	Crosswise stroke（mm）	Traverse stroke（mm）	Apparent power（KVA）	Active Power（KW）	Net weight（KG）	Air consumption(NL/CYCLE)
DDB-1400S3	500T-800T	1400	1100	2330	3.75	0.5-0.7	2	0.5
DDB-1600S3	850T-1200T	1600	1200	2830	3.75	0.5-0.7	2	0.5
DDB-1800S3	1200T-1600T	1800	1200	2830	3.75	0.5-0.7	2	0.5

Dimensions chart

Model	A	B	C	D	E	F	G	H	K
DDB-1400S3	2090	3004	2330	210	460	1400	500	1945	1100
DDB-1600S3	2190	3504	2830	210	460	1600	500	2045	1200
DDB-1800S3	2190	3504	2830	210	460	1800	500	2045	1200

High-Speed Bullhead Servo Manipulator

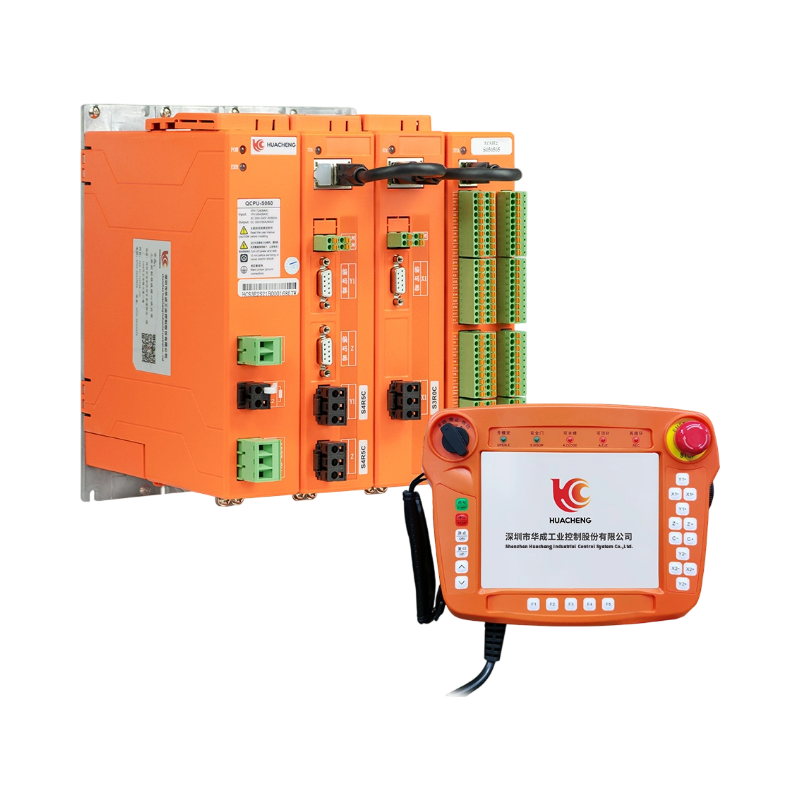

Controllers and Applications

Multiple language options available.
Mold data logging, capable of storing 1000 sets of mold memories, with each set supporting up to 400-step instructions.
Built-in high-capacity functions to meet your diverse application needs.
Automatic fault detection and alarm recording function.
Capable of indicating subtle movements with an operation time precision of 0.01 seconds.
Reserved connection points for linking peripheral equipment such as conveyors and receiving tables.
Robot arm is suitable for plastic parts like plastic cup, disposable bowl, cup, forks and knives, PVC pipe, car bumpers, sprue, mobile phone case, socket, telephone, helmet, air condition shell, toothbrush, PET bottle embryo etc.
