Max load: 20kg
I.M.M.range: 500T-1200T
Power: AC200-220V± 10%, 50/60HZ
Drive system: AC servo motor
Product Descriptions

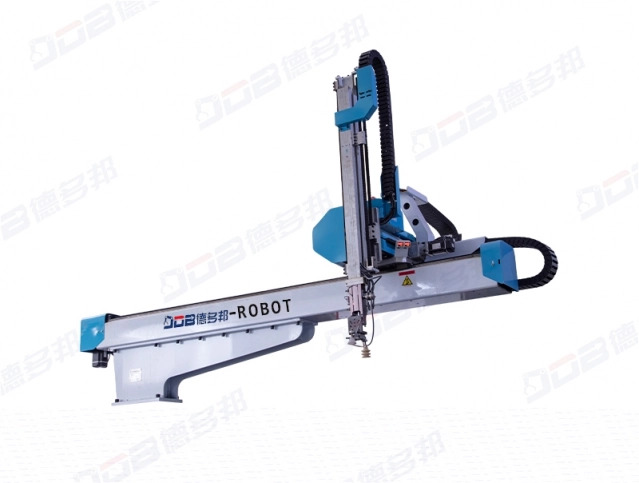

Upgrade your injection molding automation with our Long-Stroke Manipulator, perfectly tailored for 500T-1200T injection molding machines. Driven by an AC servo motor system, it delivers precise, stable, and high-speed performance. With a 20kg maximum load capacity and extended stroke range, it excels in handling large or deep-cavity molds.Ideal for automatic part ejection, insert placement, and post-molding processes, this manipulator boosts productivity while cutting labor costs.
Advantages
Seamless connection:
Signal linkage with injection molding machines reduces the waiting time for mold opening and closing, and increases the overall utilization rate ( 20%-30%).
Quick mold change support:
Preset program memory function, reducing the debugging time by more than 50% when switching products.
Reduce reliance on manual labor:
One mechanical hand can replace 2 -3 workers, reducing labor costs and management risks in the long term.
Anti-collision detection function:
Prevent mold collision accidents through infrared or force sensors.
Specifications
| General requirements | |||||||
| Model | Generol models（ton） | Vertical stroke （mm） | Crosswise stroke（mm） | Traverse stroke （mm） | apparent power （KVA） | Working air pressure （MPa） | Air consumption (NL/CYCLE) |
| DDB-1000 | 500-800T | 1000 | 700 | 1600 | 3.75 | 0.5-0.7 | 2 |
| DDB-1200 | 850-1200T | 1200 | 700 | 2000 | 3,75 | 0.5-0.7 | 2 |
Dimensions chart
| Model | A | B | C | D | E | F | G | H | I |
| DDB-1000 | 1590 | 2135 | 1600 | 260 | 335 | 1000 | 275 | 1215 | 700 |
| DDB-1200 | 1690 | 2535 | 2000 | 260 | 335 | 1200 | 275 | 1215 | 700 |
Applications
Product Picking & Placement: Quickly remove molded products and position them accurately.
In-Mold Operations: Labeling, embedding inserts, and other precision tasks inside molds.
Post-Processing: Deburring, trimming gates, and cleaning.
Quality Inspection: Automated inspection, sorting, and rejection of defective parts.
Stacking & Palletizing: Automated, orderly product stacking for easier logistics handling.
Assembly Line Integration: Seamlessly connect with other equipment to build smart, fully automated production lines.
Application industry:
Automobile manufacturing
Medical equipment
Consumer electronics
Packaging industry
Daily necessities industry
