Max load: 50kg
I.M.M.range: 500T-2800T
Power: AC200-220V± 10%, 50/60HZ
Drive system: AC servo motor
Product Descriptions

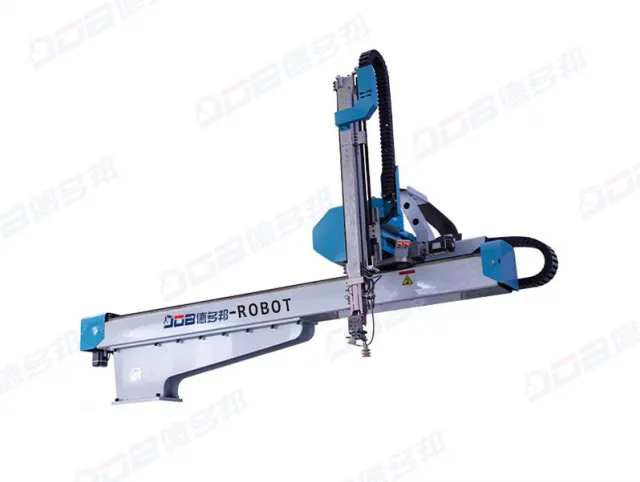

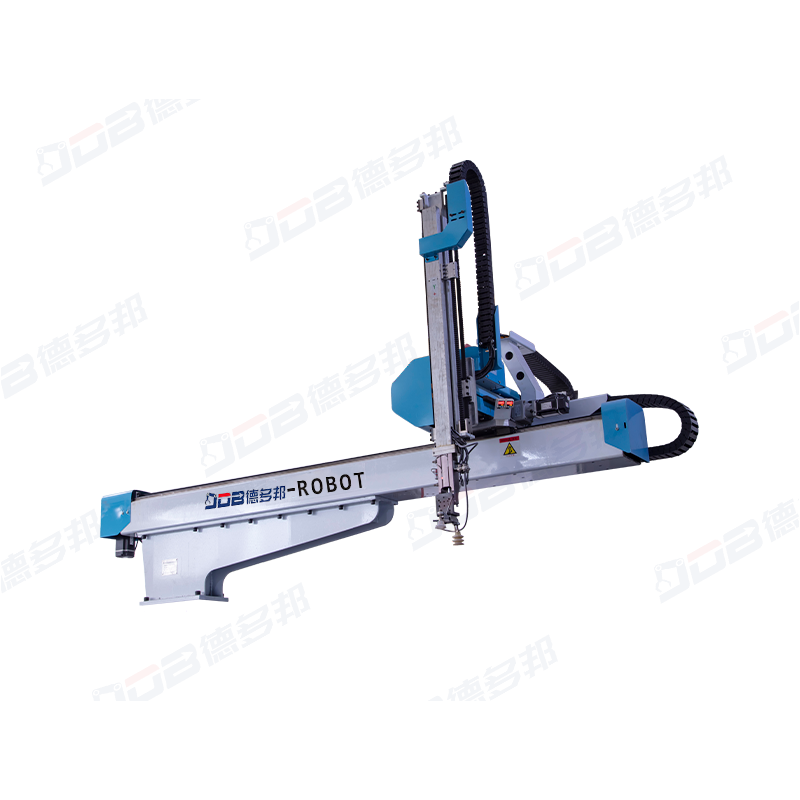

The Large injection molding machine manipulator is designed for 500-2800T machines, perfect for large parts like automotive bumpers and industrial containers. It offers an 3.3m horizontal stroke, 50kg payload, and ±0.2mm repeatability. A patented low-vibration design reduces deflection by 40%, ensuring part accuracy during long-stroke extractions. Ideal for high-volume, precision molding lines.
Advantages
Quick model change capability:
The preset program library supports rapid switching between different molds and products, reducing downtime.
Multi-machine collaboration:
Supports 2-3 mechanical arms to work collaboratively (such as one for picking up parts, one for palletizing, and one for assembly)
Structural reinforcement design:
Steel arm body + harmonic reducer, with an impact resistance life of over 100,000 hours.
Human-machine collaboration:
One mechanical hand can replace 2 to 5 workers, with an investment payback period of ≤1.5 years.
Specifications
| General requirements | ||||||||
| Model | Generol models（ton） | Vertical stroke（mm） | Crosswise stroke（mm） | Traverse stroke（mm） | Apparent power（KVA） | Working air pressure（MPa） | Air consumption(NL/CYCLE) | |
| DDB-1800NS3 | 500T-800T | 1800 | 1100 | 3330 | 5.5 | 0.5-0.7 | 2 | |
| DDB-2000NS3 | 850T-1200T | 2000 | 1200 | 3830 | 5.5 | 0.5-0.7 | 2 | |
| DDB-2500NS3 | 2800T | 2500 | 1500 | 4350 | 5.5 | 0.5-0.7 | 2 | |
Dimensions chart

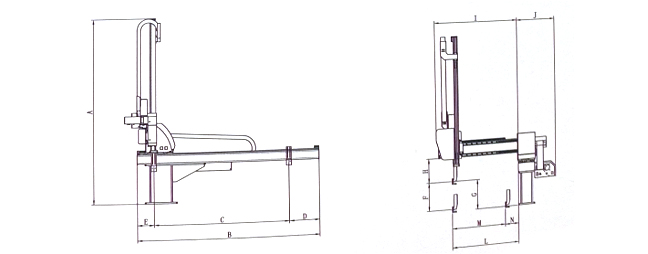

| Model | A | B | C | D | E | F | G | H | K |
| DDB-1800NS3 | 2595 | 4004 | 3350 | 255 | 320 | 1800 | 870 | 1975 | 1200 |
| DDB-2000NS3 | 2695 | 4504 | 3850 | 255 | 320 | 2000 | 870 | 2275 | 1500 |
| DDB-2500NS3 | 2945 | 5004 | 4350 | 255 | 320 | 2500 | 870 | 2275 | 1500 |
Applications
Product Picking & Placement: Quickly remove molded products and position them accurately.
In-Mold Operations: Labeling, embedding inserts, and other precision tasks inside molds.
Post-Processing: Deburring, trimming gates, and cleaning.
Quality Inspection: Automated inspection, sorting, and rejection of defective parts.
Stacking & Palletizing: Automated, orderly product stacking for easier logistics handling.
Assembly Line Integration: Seamlessly connect with other equipment to build smart, fully automated production lines.
Application industry:
Automobile manufacturing
Medical equipment
Consumer electronics
Packaging industry
Daily necessities industry
