Max load: 20kg
I.M.M.range: 500T-1600T
Power: AC200-220V± 10%, 50/60HZ
Drive system: AC servo motor

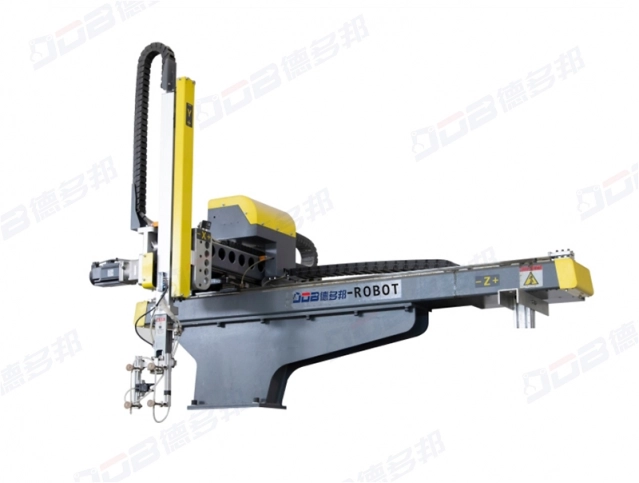

Product Descriptions
The high-speed bullhead servo manipulator is expertly engineered for rapid, precision-oriented handling of plastic components in injection molding applications. Boasting a 20kg maximum load capacity and compatibility with 500T-1600T injection molding machines (I.M.M.)range, it features a reliable AC servo motor for stable, high-speed operation. Ideal for improving productivity and reducing cycle times, it’s perfect for factories needing a high-speed robot manipulator for plastics. Durable, efficient, and easy to integrate into automated production lines.
Advantages
Precision manufacturing:
High-precision processing equipment and techniques are adopted to ensure that each component of the mechanical hand has high precision and stable operation.
Modular design:
Easy to maintain and upgrade, and components can be replaced or upgraded as needed.
Quality Control:
A strict quality control process ensures that each mechanical hand meets high standards of quality requirements.
Durable materials:
Made of durable materials, it ensures a long service life of the manipulator and reduces maintenance costs.
Specifications
| General requirements | ||||||||
| Model | General models（ton） | Vertical stroke（mm） | Crosswise stroke（mm） | Traverse stroke（mm） | Apparent power（KVA） | Active Power（KW） | Net weight（KG） | Air consumption(NL/CYCLE) |
| DDB-1400S3 | 500T-800T | 1400 | 1100 | 2330 | 3.75 | 0.5-0.7 | 2 | 0.5 |
| DDB-1600S3 | 850T-1200T | 1600 | 1200 | 2830 | 3.75 | 0.5-0.7 | 2 | 0.5 |
| DDB-1800S3 | 1200T-1600T | 1800 | 1200 | 2830 | 3.75 | 0.5-0.7 | 2 | 0.5 |

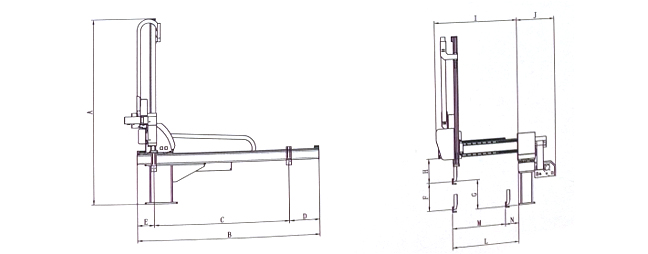

Dimensions chart
| Model | A | B | C | D | E | F | G | H | K |
| DDB-1400S3 | 2090 | 3004 | 2330 | 210 | 460 | 1400 | 500 | 1945 | 1100 |
| DDB-1600S3 | 2190 | 3504 | 2830 | 210 | 460 | 1600 | 500 | 2045 | 1200 |
| DDB-1800S3 | 2190 | 3504 | 2830 | 210 | 460 | 1800 | 500 | 2045 | 1200 |

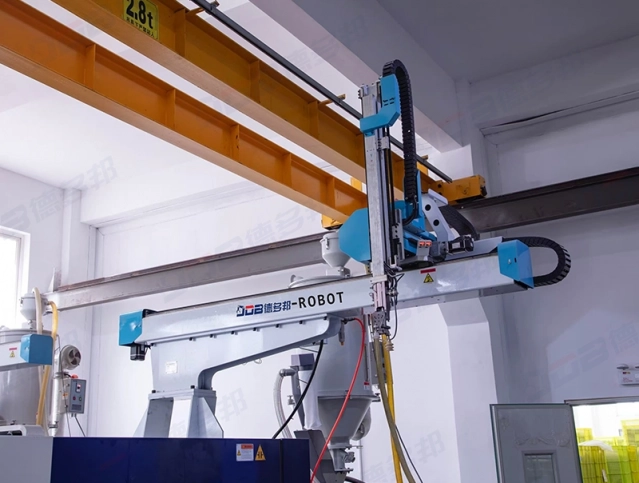

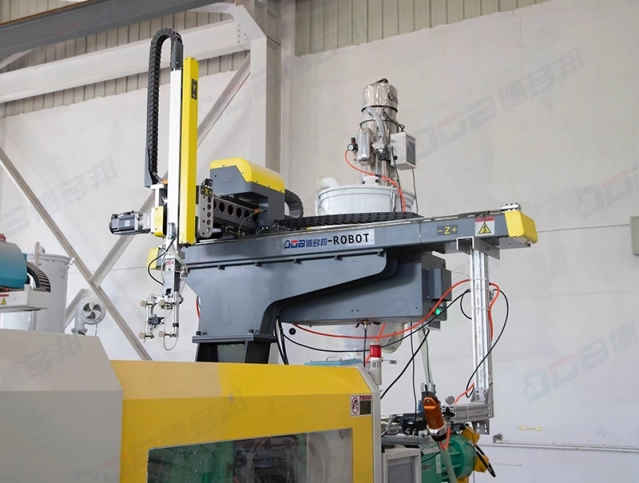

Applications
Product Picking & Placement: Quickly remove molded products and position them accurately.
In-Mold Operations: Labeling, embedding inserts, and other precision tasks inside molds.
Post-Processing: Deburring, trimming gates, and cleaning.
Quality Inspection: Automated inspection, sorting, and rejection of defective parts.
Stacking & Palletizing: Automated, orderly product stacking for easier logistics handling.
Assembly Line Integration: Seamlessly connect with other equipment to build smart, fully automated production lines.
Application industry:
Automobile manufacturing
Medical equipment
Consumer electronics
Packaging industry
Daily necessities industry
