Injection Molding Automation Robotic

Max load: 20kg
I.M.M.range: 500T-1200T
Power: AC200-220V± 10%, 50/60HZ

Drive system: AC servo motor

Inquire Now Next Product

Product Descriptions

This injection molding automation robot combines speed, power, and a compact footprint. Designed specifically for 500 to 1200 ton injection molding machines, it provides smooth servo control and stable discharge performance for medium-sized injection-molded parts that require high cycle time and precision.

Injection Molding Automation Robotic

Advantages

Seamless connection:

Signal linkage with injection molding machines reduces the waiting time for mold opening and closing, and increases the overall utilization rate ( 20%-30%).

Quick mold change support:

Preset program memory function, reducing the debugging time by more than 50% when switching products.

Reduce reliance on manual labor:

One mechanical hand can replace 2 -3 workers, reducing labor costs and management risks in the long term.

Anti-collision detection function:

Prevent mold collision accidents through infrared or force sensors.

Specifications

General requirements
Model	Generol models（ton）	Vertical stroke （mm）	Crosswise stroke（mm）	Traverse stroke （mm）	apparent power （KVA）	Working air pressure （MPa）	Air consumption (NL/CYCLE)
DDB-1000	500-800T	1000	700	1600	3.75	0.5-0.7	2
DDB-1200	850-1200T	1200	700	2000	3,75	0.5-0.7	2

Dimensions chart

Model	A	B	C	D	E	F	G	H	I
DDB-1000	1590	2135	1600	260	335	1000	275	1215	700
DDB-1200	1690	2535	2000	260	335	1200	275	1215	700

Long-stroke Manipulator

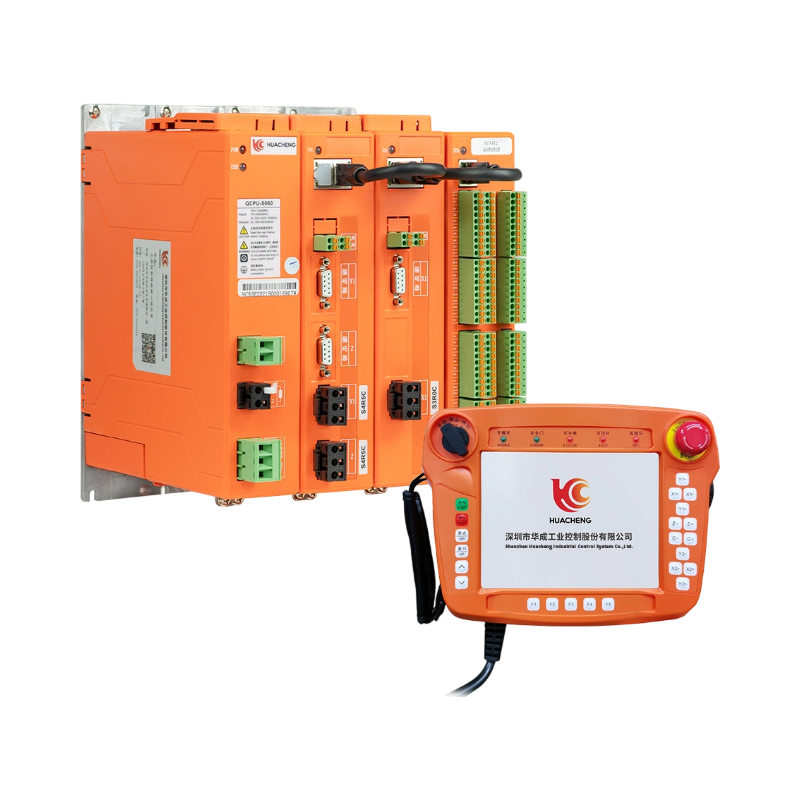

Controllers and Applications

Multiple language options available.
Mold data logging, capable of storing 1000 sets of mold memories, with each set supporting up to 400-step instructions.
Built-in high-capacity functions to meet your diverse application needs.
Automatic fault detection and alarm recording function.
Capable of indicating subtle movements with an operation time precision of 0.01 seconds.
Reserved connection points for linking peripheral equipment such as conveyors and receiving tables.
Robot arm is suitable for plastic parts like plastic cup, disposable bowl, cup, forks and knives, PVC pipe, car bumpers, sprue, mobile phone case, socket, telephone, helmet, air condition shell, toothbrush, PET bottle embryo etc.
