Max load: 3kg
I.M.M.range:160T-470T
Power: AC200-220V± 10%, 50/60HZ
Drive system: AC servo motor

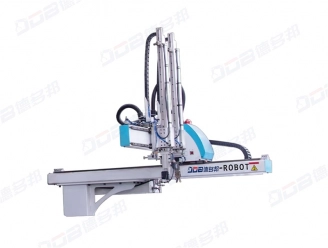

Product Descriptions

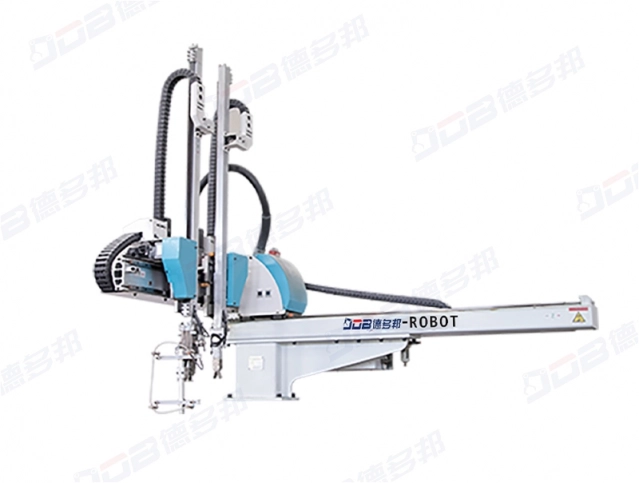

The 5-axis tandem servo robots models 800S5/1000S5/1200S5 are engineered for 160-470T injection molding machines, delivering ±0.1mm precision under 3kg payload. Their dual-arm design (main/sub-arm extraction/vertical + cross traverse) enables synchronized operations — simultaneously retrieving intricate molded parts, inserting metal inserts, and executing plastic overmolding. Fully servo-driven with IoT-ready controls, these robots achieve ≤3.5s cycle times while reducing energy consumption by 25% vs standard models.
Advantages
Precision machining:
High-precision CNC machines are used for part processing to ensure dimensional accuracy and surface quality of components.
Quality control:
Strict quality control is implemented throughout the production process, including dimensional inspection and performance testing, to ensure products meet design requirements.
Surface treatment:
The manipulator's surface undergoes anti-rust treatment such as painting or electroplating to enhance corrosion resistance and aesthetics.
Electrical installation:
Electrical components like servo motors and sensors are precisely installed to ensure the stability and reliability of the electrical system.
Specifications
| General requirements | ||||||||
| Model | General models（ton） | Vertical stroke（mm） | Crosswise stroke（mm） | Traverse stroke（mm） | Apparent power（KVA） | Active Power（KW） | Net weight（KG） | Air consumption(NL/CYCLE) |
| DDB-800S5 | 160-200T | 800/800 | 425/435 | 1350 | 0.8 | 2.7 | 180 | 0.5 |
| DDB-1000S5 | 250-280T | 1000/1000 | 425/435 | 1520 | 0.8 | 2.7 | 200 | 0.5 |
| DDB-1200S5 | 320-470T | 1200/1200 | 525/535 | 1900 | 0.8 | 2.7 | 210 | 0.5 |

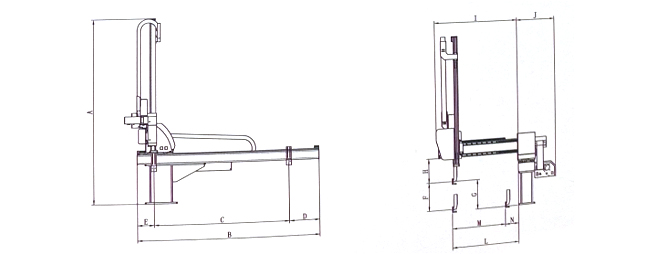

Dimensions chart
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| DDB-800S5 | 1340 | 1844 | 1350 | 278 | 205 | 800 | 350 | 270 | 950 | 502 | 375 | 756 | 425 | 215 |
| DDB-1000S5 | 1460 | 2004 | 1520 | 278 | 205 | 1000 | 360 | 279 | 945 | 502 | 375 | 756 | 425 | 215 |
| DDB-1200S5 | 1540 | 2404 | 1900 | 278 | 205 | 1200 | 360 | 270 | 1045 | 502 | 375 | 856 | 525 | 215 |
Applications
1.Picking & Placement: Quickly remove molded products and position them accurately.
2.In-Mold Operations: Labeling, embedding inserts, and other precision tasks inside molds.
3.Post-Processing: Deburring, trimming gates, and cleaning.
4.Quality Inspection: Automated inspection, sorting, and rejection of defective parts.
5.Stacking & Palletizing: Automated, orderly product stacking for easier logistics handling.
6.Assembly Line Integration: Seamlessly connect with other equipment to build smart, fully automated production lines.
Application industry:
Automobile manufacturing
Medical equipment
Consumer electronics
Packaging industry
Daily necessities industry
