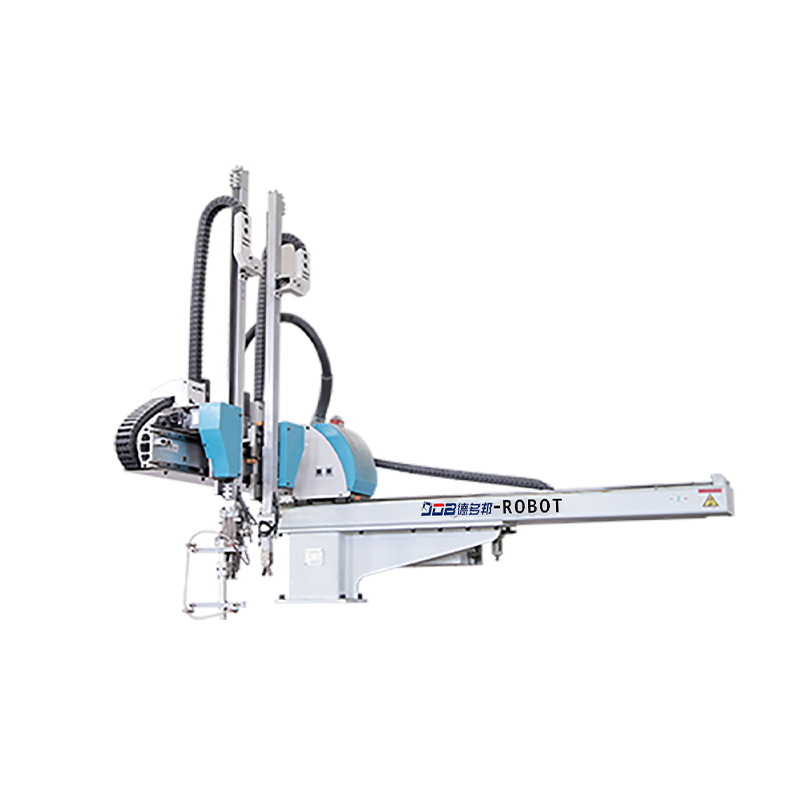

High-speed 5-axis servo robot for thin-wall molding China

Max load: 3kg
I.M.M.range:160T-470T
Power: AC200-220V± 10%, 50/60HZ

Drive system: AC servo motor

Inquire Now Next Product

Product Descriptions

High-speed 5-axis servo robots for thin-wall molding made in China are widely used in 160-470 ton horizontal injection molding machines. They are mainly used for quickly and accurately removing finished products and sprues to meet the strict requirements for the appearance of finished products.
The robot arm has a load capacity of 3 kg, and the entire machine adopts full servo drive, ensuring stable operation and smooth movement. The vertical stroke of the arm can reach 800 mm, 1000 mm, and 1200 mm, while the horizontal travel is 1350 mm, 1520 mm, and 1900 mm. These features meet the needs of manufacturers pursuing stable quality, shorter production cycles, and automated production.In addition, the AC/BC rotating axes can be customized according to different product requirements.

High-speed 5-axis servo robot for thin-wall molding China

Advantages

Precision machining:

High-precision CNC machines are used for part processing to ensure dimensional accuracy and surface quality of components.

Quality control:

Strict quality control is implemented throughout the production process, including dimensional inspection and performance testing, to ensure products meet design requirements.

Surface treatment:

The manipulator's surface undergoes anti-rust treatment such as painting or electroplating to enhance corrosion resistance and aesthetics.

Electrical installation:

Electrical components like servo motors and sensors are precisely installed to ensure the stability and reliability of the electrical system.

Specifications

General requirements
Model	General models（ton）	Vertical stroke（mm）	Crosswise stroke（mm）	Traverse stroke（mm）	Apparent power（KVA）	Active Power（KW）	Net weight（KG）	Air consumption(NL/CYCLE)
DDB-800S5	160-200T	800/800	425/435	1350	0.8	2.7	180	0.5
DDB-1000S5	250-280T	1000/1000	425/435	1520	0.8	2.7	200	0.5
DDB-1200S5	320-470T	1200/1200	525/535	1900	0.8	2.7	210	0.5

Dimensions chart

Model	A	B	C	D	E	F	G	H	I	J	K	L	M	N
DDB-800S5	1340	1844	1350	278	205	800	350	270	950	502	375	756	425	215
DDB-1000S5	1460	2004	1520	278	205	1000	360	279	945	502	375	756	425	215
DDB-1200S5	1540	2404	1900	278	205	1200	360	270	1045	502	375	856	525	215

5-axis Tandem Servo Robots

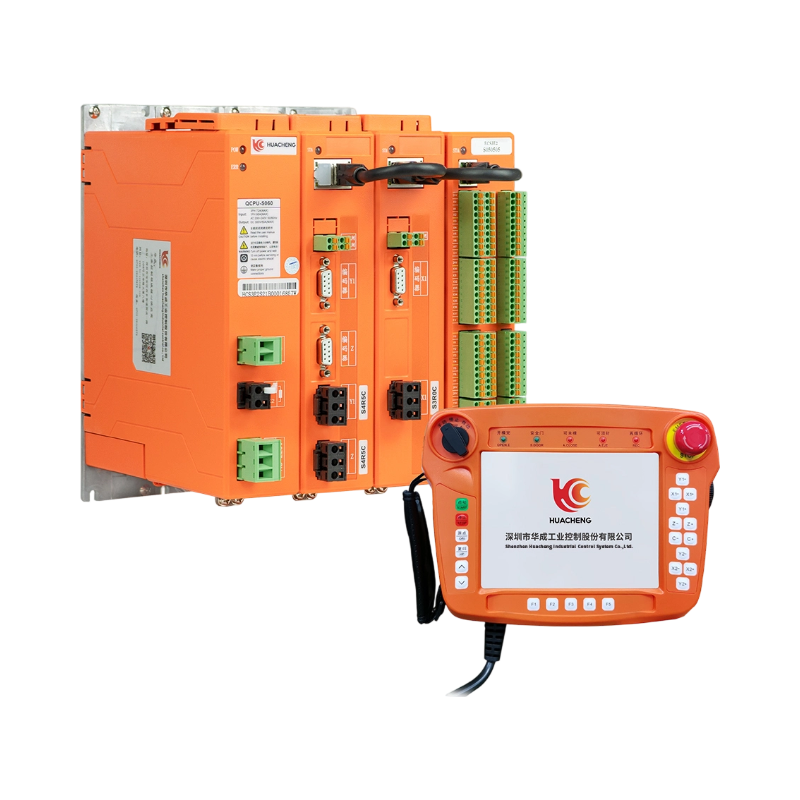

Controllers and Applications

Multiple language options available.
Mold data logging, capable of storing 1000 sets of mold memories, with each set supporting up to 400-step instructions.
Built-in high-capacity functions to meet your diverse application needs.
Automatic fault detection and alarm recording function.
Capable of indicating subtle movements with an operation time precision of 0.01 seconds.
Reserved connection points for linking peripheral equipment such as conveyors and receiving tables.
Robot arm is suitable for plastic parts like plastic cup, disposable bowl, cup, forks and knives, PVC pipe, car bumpers, sprue, mobile phone case, socket, telephone, helmet, air condition shell, toothbrush, PET bottle embryo etc.
