Max load:10kg
I.M.M.range:160T-470T
Power: AC200-220V± 10%, 50/60HZ
Drive system: AC servo motor
Product Descriptions

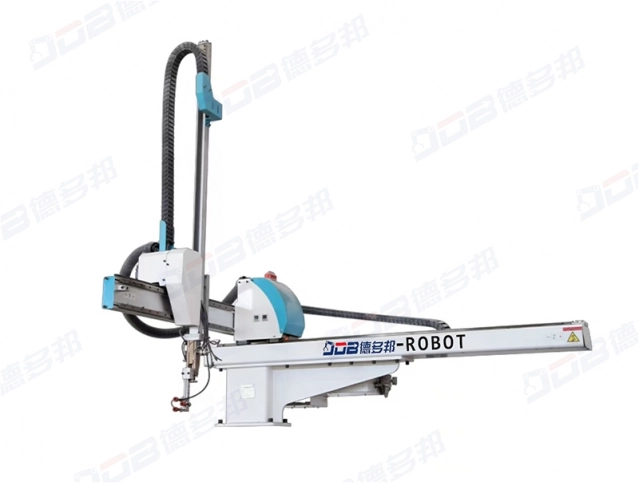

The 3-axis servo robot models 800S3/1000S3/1200S3 are compatible with 160-470T injection molding machines. As a type of Injection Molding Servo Manipulator, these robots are driven by AC servo motors and feature a 10kg maximum load, 800-1200mm vertical stroke, and 1350-1900mm horizontal travel. They are ideal for simple product processing and assembly operations such as welding, spraying, and parts handling.
Offering a repeatability of ≤±0.02mm and 24/7 continuous operation (MTBF＞15,000 hours), this series ensures reliable, high-efficiency performance. making them a top pick among Servo Injection Molding Robot.
Advantages
High-Precision Positioning
The advanced 3-axis design allows precise movement in X, Y, and Z directions, making it ideal for processes that demand high accuracy and stability.
Strong Load Capacity
Handles loads up to 10kg with ease — perfect for moving medium and heavy parts in industrial settings.
Fixed 90° Rotation
Equipped with a fixed 90° rotation angle to meet specific application needs in automated production lines.
Energy-Efficient & Reliable
Driven by high-efficiency AC servo motors, offering lower energy consumption, stable performance, and reduced operating costs.
Specifications
| General requirements | ||||||||
| Model | General models（ton） | Vertical stroke（mm） | Crosswise stroke（mm） | Traverse stroke（mm） | Apparent power（KVA） | Active Power（KW） | Net weight（KG） | Air consumption(NL/CYCLE) |
| DDB-800S3 | 160-200T | 800 | 300 | 1350 | 0.8 | 0.4 | 150 | 0.5 |
| DDB-1000S3 | 250-280T | 1000 | 300 | 1520 | 0.8 | 0.4 | 160 | 0.5 |
| DD-B1200S3 | 320-470T | 1200 | 300 | 1900 | 0.8 | 0.4 | 180 | 0.5 |

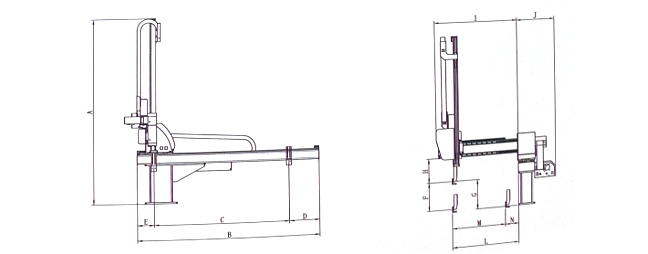

Dimensions Chart
| Model | A | B | C | D | E | F | G | H | I | J | L | M | N |
| DDB-800S3 | 1780 | 1844 | 1350 | 278 | 205 | 800 | 360 | 266 | 945 | 502 | 805 | 300 | 153 |
| DDB-1000S3 | 1980 | 2004 | 1520 | 278 | 205 | 1000 | 360 | 266 | 945 | 502 | 805 | 300 | 153 |
| DDB-1200S3 | 2180 | 2404 | 1900 | 278 | 205 | 1200 | 360 | 266 | 1045 | 502 | 905 | 300 | 153 |

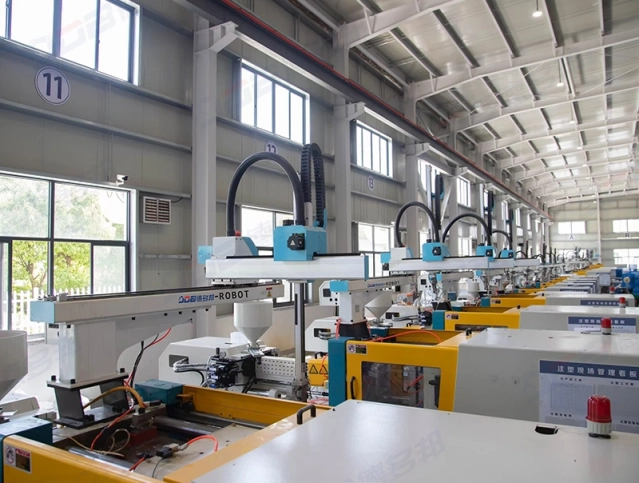

Applications
Product Picking & Placement: Quickly remove molded products and position them accurately.
In-Mold Operations: Labeling, embedding inserts, and other precision tasks inside molds.
Post-Processing: Deburring, trimming gates, and cleaning.
Quality Inspection: Automated inspection, sorting, and rejection of defective parts.
Stacking & Palletizing: Automated, orderly product stacking for easier logistics handling.
Assembly Line Integration: Seamlessly connect with other equipment to build smart, fully automated production lines.
Application industry:
Automobile manufacturing
Medical equipment
Consumer electronics
Packaging industry
Daily necessities industry
