3 axis servo robot for injection molding

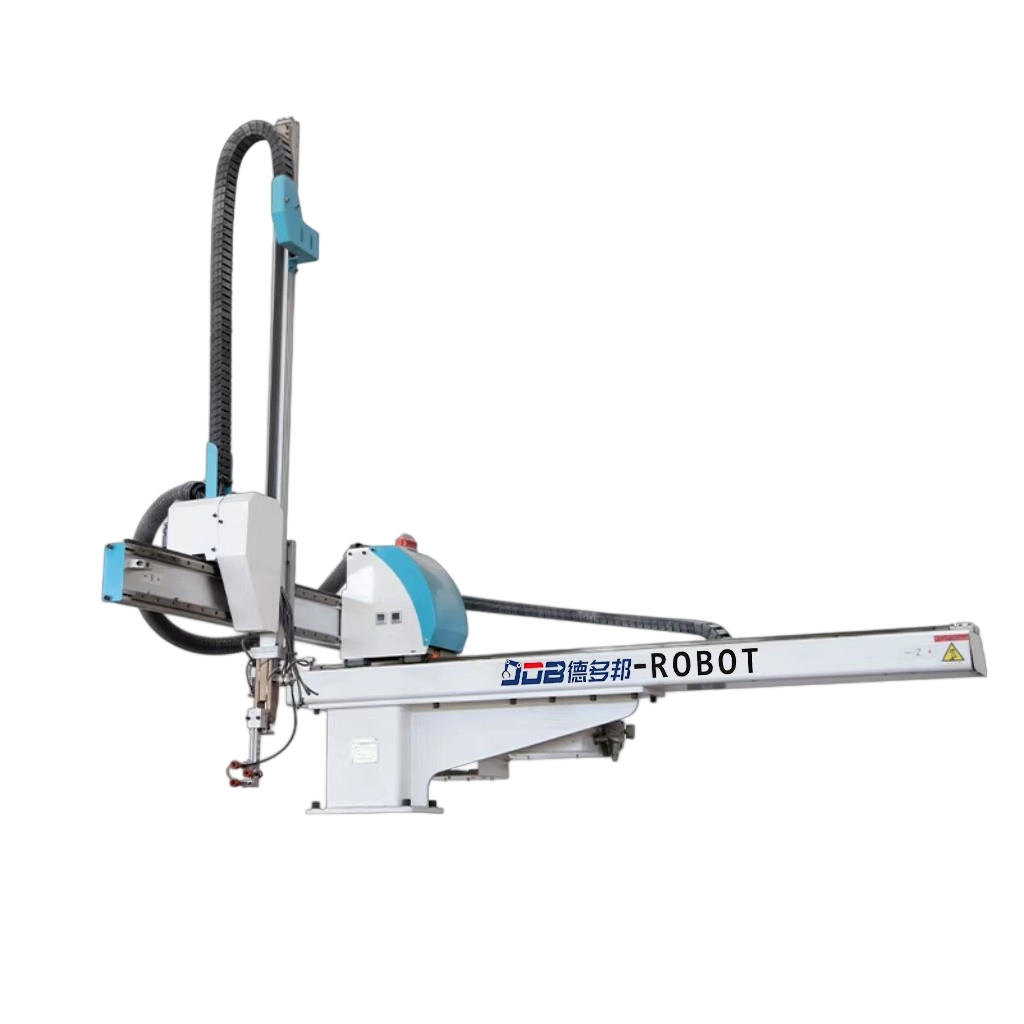

3-axis robot for silicone rubber molding

Max load:10kg
I.M.M.range:160T-470T
Power: AC200-220V± 10%, 50/60HZ

Drive system: AC servo motor

Inquire Now Next Product

Product Descriptions

This 3-axis robot for silicone rubber molding is a type of injection molding servo manipulator. It combines AC servo motor and cylinder movement to quickly remove lightweight injection-molded parts. Additionally, it is compatible with 160-470 ton injection molding machines, has a load capacity of 10 kg, and supports24/7 continuous operation.

3-axis robot for silicone rubber molding

Advantages

High-Precision Positioning

The advanced 3-axis design allows precise movement in X, Y, and Z directions, making it ideal for processes that demand high accuracy and stability.

Strong Load Capacity

Handles loads up to 10kg with ease — perfect for moving medium and heavy parts in industrial settings.

Fixed 90° Rotation

Equipped with a fixed 90° rotation angle to meet specific application needs in automated production lines.

Energy-Efficient & Reliable

Driven by high-efficiency AC servo motors, offering lower energy consumption, stable performance, and reduced operating costs.

Specifications

General requirements
Model	General models（ton）	Vertical stroke（mm）	Crosswise stroke（mm）	Traverse stroke（mm）	Apparent power（KVA）	Active Power（KW）	Net weight（KG）	Air consumption(NL/CYCLE)
DDB-800S3	160-200T	800	300	1350	0.8	0.4	150	0.5
DDB-1000S3	250-280T	1000	300	1520	0.8	0.4	160	0.5
DD-B1200S3	320-470T	1200	300	1900	0.8	0.4	180	0.5

Dimensions Chart

Model	A	B	C	D	E	F	G	H	I	J	L	M	N
DDB-800S3	1780	1844	1350	278	205	800	360	266	945	502	805	300	153
DDB-1000S3	1980	2004	1520	278	205	1000	360	266	945	502	805	300	153
DDB-1200S3	2180	2404	1900	278	205	1200	360	266	1045	502	905	300	153

3-axis Servo Robot

Controllers and Applications

Multiple language options available.
Mold data logging, capable of storing 1000 sets of mold memories, with each set supporting up to 400-step instructions.
Built-in high-capacity functions to meet your diverse application needs.
Automatic fault detection and alarm recording function.
Capable of indicating subtle movements with an operation time precision of 0.01 seconds.
Reserved connection points for linking peripheral equipment such as conveyors and receiving tables.
Robot arm is suitable for plastic parts like plastic cup, disposable bowl, cup, forks and knives, PVC pipe, car bumpers, sprue, mobile phone case, socket, telephone, helmet, air condition shell, toothbrush, PET bottle embryo etc.

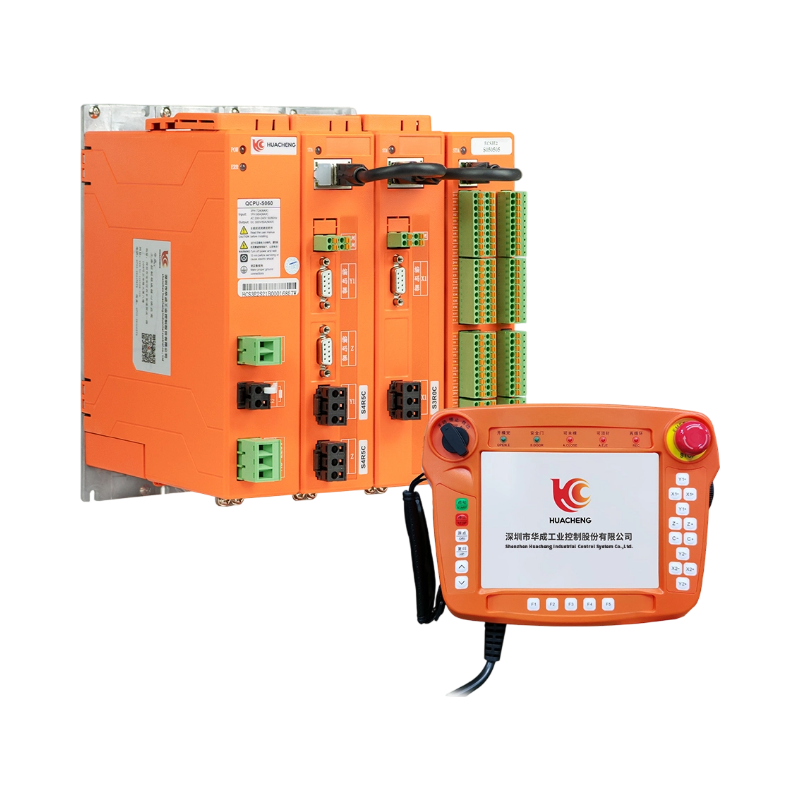

Injection Molding Manipulator Control System
