Max load: 3kg
I.M.M.range: 160T-470T
Power: AC200-220V± 10%, 50/60HZ
Drive system: AC servo motor+ Cylinde
Product Descriptions

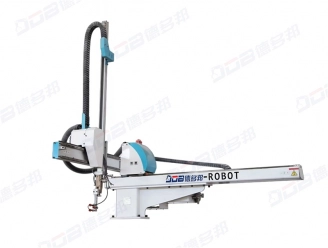

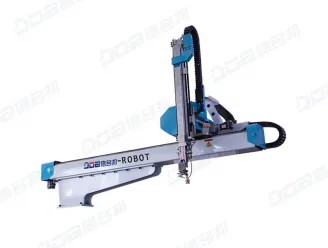

Upgrade your injection molding line with our 3-Axis Injection Molding Robot — models 1350S3, 1520S3, and 1900S3. Designed for 160-470T machines, it uses AC servo motors combined with pneumatic systems for fast, stable, and precise part handling.Featuring pneumatic finger cylinders for reliable clamping and high repeatability, this robot reduces manual errors and improves productivity. Ideal for part ejection, insert placement, and post-molding tasks, it’s a smart choice for manufacturers seeking efficient Servo & Telescopic Arm Robots for Sale.
Advantages
High Load Capacity:
Supports up to 3Kg, meeting diverse injection molding needs with ease.
Precise Motion Control:
Powered by advanced AC servo motors and pneumatic cylinders for smooth, accurate, and stable operation.
Energy-Efficient Performance:
Designed with low sliding table load capacity and reduced air consumption to lower energy costs.
Durable and Reliable:
Crafted from premium materials and built with precision manufacturing processes, ensuring long-term stability and consistent performance.
Specifications
| General requirements | ||||||||
| Model | General models（ton） | Vertical stroke（mm） | Crosswise stroke（mm） | Traverse stroke（mm） | Apparent power（KVA） | Active Power（KW） | Net weight（KG） | Air consumption(NL/CYCLE) |
| DDB-1350S3 | 160-200T | 800 | 425 | 1350 | 0.8 | 2.7 | 180 | 0.5 |
| DDB-1520S3 | 250-280T | 1000 | 425 | 1520 | 0.8 | 2.7 | 160 | 0.5 |
| DDB-1900S3 | 320-470T | 1200 | 525 | 1900 | 0.8 | 2.7 | 180 | 0.5 |

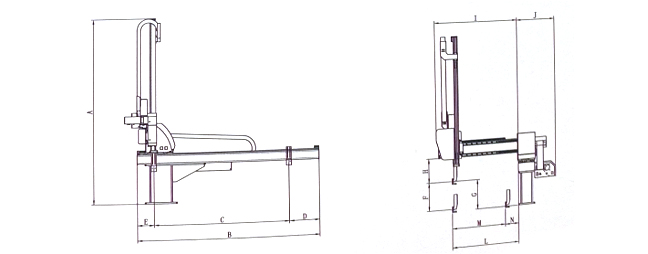

Dimensions chart
| Model | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
| DDB-1350S3 | 1340 | 1844 | 1350 | 278 | 205 | 800 | 350 | 270 | 950 | 502 | / | 756 | 660 | 110 |
| DDB-1520S3 | 1460 | 2004 | 1520 | 278 | 205 | 1000 | 360 | 279 | 945 | 502 | / | 756 | 660 | 110 |
| DDB-1900S3 | 1520 | 2404 | 1900 | 278 | 205 | 1200 | 360 | 270 | 1045 | 502 | / | 856 | 760 | 110 |

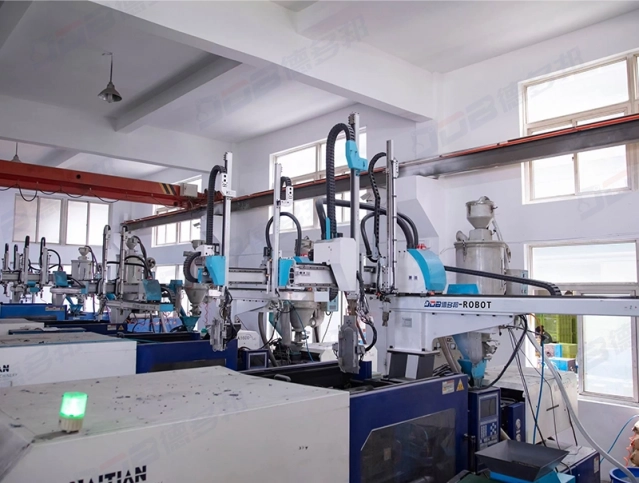

Applications
Product Picking & Placement: Quickly remove molded products and position them accurately.
In-Mold Operations: Labeling, embedding inserts, and other precision tasks inside molds.
Post-Processing: Deburring, trimming gates, and cleaning.
Quality Inspection: Automated inspection, sorting, and rejection of defective parts.
Stacking & Palletizing: Automated, orderly product stacking for easier logistics handling.
Assembly Line Integration: Seamlessly connect with other equipment to build smart, fully automated production lines.
Application industry:
Automobile manufacturing
Medical equipment
Consumer electronics
Packaging industry
Daily necessities industry
