Maximum load: 165kg.
Repeat positioning accuracy: ±0.02mm.
Protection grade: IP50.
Main body weight: 1100kg
Installation: ground, side hanging, ceiling hanging.
Product Descriptions

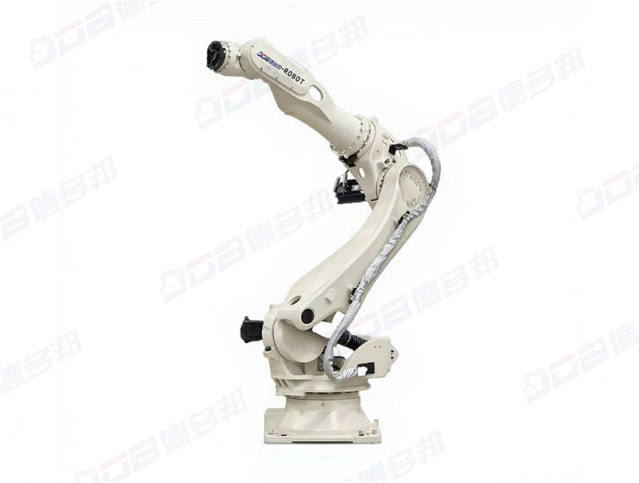

The Heavy Duty Robotic Arm for Handling is an industrial robot specifically designed for high-load operations. It can easily handle and move objects weighing up to 165kg, meeting the demands of handling, processing, and assembling large-load materials. With an arm length of 2650mm, it can operate within a larger spatial range and cover more working areas at once. It can complete rapid movement with a displacement of 50mm within 0.5 seconds, improving production efficiency. While enhancing production efficiency and quality, it also pays attention to energy conservation and environmental protection. Its compact structural design and low energy consumption feature enable enterprises to enjoy the convenience brought by automation while actively responding to the call for energy conservation and emission reduction.
Specifications
| Basic Parameters | ||
| Action area | Maximum elongation | 2650(mm) |
| Minimum elongation | 520(mm) | |
| Before and after | 2130(mm) | |
| Range of motion | J1 | ±180 |
| J2 | -80/+160 | |
| J3 | -71/+91 | |
| J4 | ±360 | |
| J5 | -45/+225 | |
| J6 | ±360 | |
| Maximum instantaneous velocity | J1 | 95 |
| J2 | 86 | |
| J3 | 90 | |
| J4 | 182 | |
| J5 | 175 | |
| J6 | 265 | |
