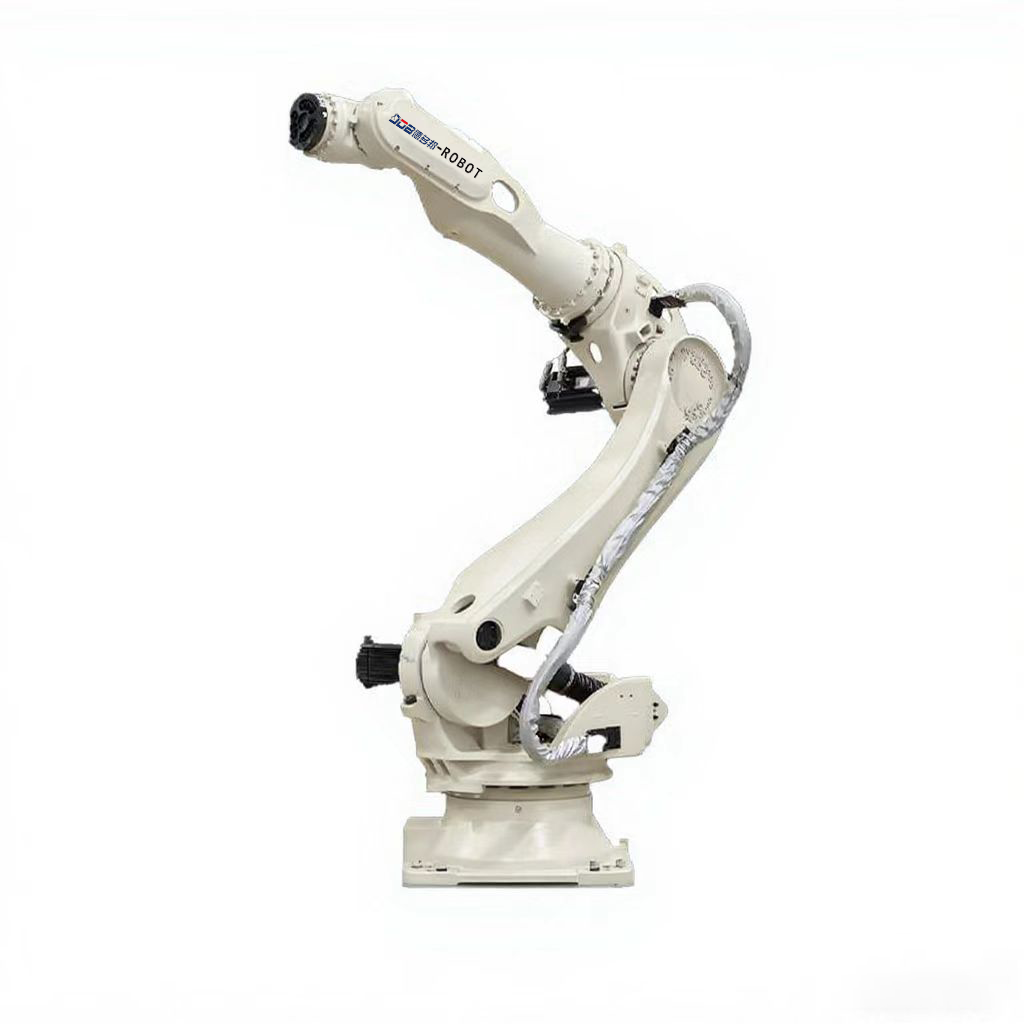

High Payload Industrial Robot Arm

Maximum load: 165kg.

Repeat positioning accuracy: ±0.02mm.

Protection grade: IP50.

Main body weight: 1100kg

Installation: ground, side hanging, ceiling hanging.

Inquire Now Next Product

Product Descriptions

Suitable for heavy-tonnage workpiece handling, welding assembly, and loading/unloading processes. It replaces traditional overhead cranes and manual operations, enhancing production safety and stability. The 165kg payload model operates continuously and stably under heavy-load conditions, serving as the industrial robot arm for large-scale automated production lines.

Typical Challenges in Large Workpiece Handling

Heavy material handling relies on manual labor or overhead cranes, leading to low efficiency and potential safety hazards.
Large molds and vehicle body assemblies demand high equipment load capacity and structural stability.
Production lines require long-term continuous operation, and equipment downtime causes significant losses.

Reinforced Structure & High Protection Level Design

One-piece cast body for high rigidity.
Key components with IP67 protection, resistant to dust, cutting fluid, and high-temperature environments.
Maintains stable operation for long periods under high-intensity cycles, reducing maintenance downtime.

165kg Rated Payload Applicability

Automotive welding fixtures
Construction machinery structural parts
Heavy castings and forging blanks

High-Stability Structural Design

Heavy body weight minimizes vibration during operation.
Reinforced power system maintains positioning accuracy when handling heavy loads at high speeds.

2650mm Extended Working Range

Covers operating areas of large vertical machining centers, presses, and other equipment.
Supports integrated loading/unloading for multiple workstations.

Specifications

Basic Parameters
Action area	Maximum elongation	2650(mm)
	Minimum elongation	520(mm)
	Before and after	2130(mm)
Range of motion	J1	±180
	J2	-80/+160
	J3	-71/+91
	J4	±360
	J5	-45/+225
	J6	±360
Maximum instantaneous velocity	J1	95
	J2	86
	J3	90
	J4	182
	J5	175
	J6	265

Applications

Automotive Manufacturing: Acts as an automotive welding robot for vehicle body assembly handling and heavy-duty spot welding.

Machine Tool Loading/Unloading: Serves as a CNC machine tending robot for loading, unloading, and monitoring large CNC machine tools, milling machines, and presses.

Foundry/Forging Workshops: Functions as a foundry robot for picking and transferring high-temperature castings and forgings.
